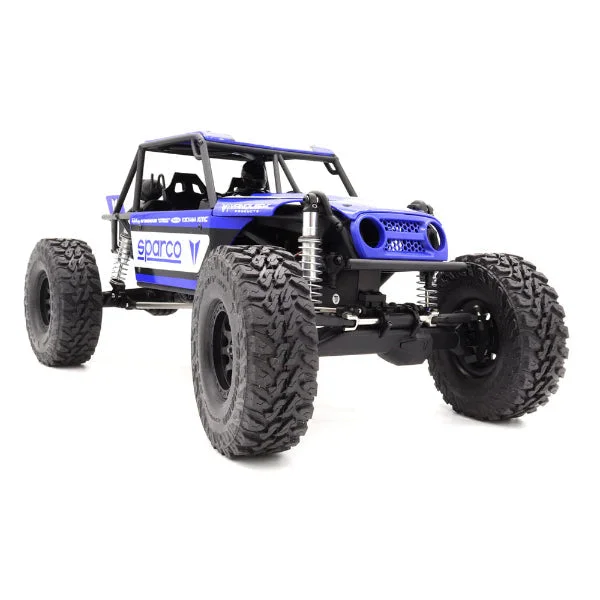

Vanquish: H10 Optic RTR

Description

The Vanquish H10 Optic RTR combines scale realism with performance, featuring licensed body, portal axles, and trail-ready electronics.

Required To Run

• 2-3S LiPo Battery (XT60 Plug)
• Compatible battery charger for selected battery (XT60 Plug)

Features

• VT-1 Digital 4 Channel Transmitter with screen, memory, and switches for dig and overdrive control
• VE-1 Hobbywing 1060 ESC
• VM-1 35T Brushed Motor delivers smooth low-end torque and trail-ready speed
• VS-1 Metal Gear Servo offers 200 oz-in of torque with water-resistant durability

Specifications

• 1/10th Scale
• Geolandar M/T Red Compound 4.75” x 1.9” Tires
• Axle Ratio 3.75:1
• Pinion 15T 32P
• Spur 56T 32P
• Overall Width Hex to Hex – 206mm (8.11”)
• Wheelbase – 337mm (13.26”)
• Overall Height – 198mm (7.80”)
• Overall Front Ratio 41.3:1
• Overall Rear Ratio 44.0:1
• Final Overdrive 6%
• RTR Weight (without battery) 5.35lbs (2.43kg)
• Battery Compartment Size: 93mm x 36mm x 42mm

Motor Specifications

• Motor Name: VM-1 35T Brushed Motor
• Turns: 35T
• Motor Type:  Brushed
• Motor Shaft Size: 3.175 mm (1/8″)
• Designed Use: Trail and crawling – high torque with moderate speed

ESC Specifications

• ESC Name: VE-1 (Hobbywing 1060 ESC)
• ESC Type: Brushed electronic speed control
• Battery Compatibility: 2S–3S LiPo
• Water Resistance: Sealed design suitable for light water exposure
• Connector Type: XT60

What’s In The Box

• H10 Optic Sparco RTR
• VT-1 Digital 4 Channel Transmitter
• Manual
